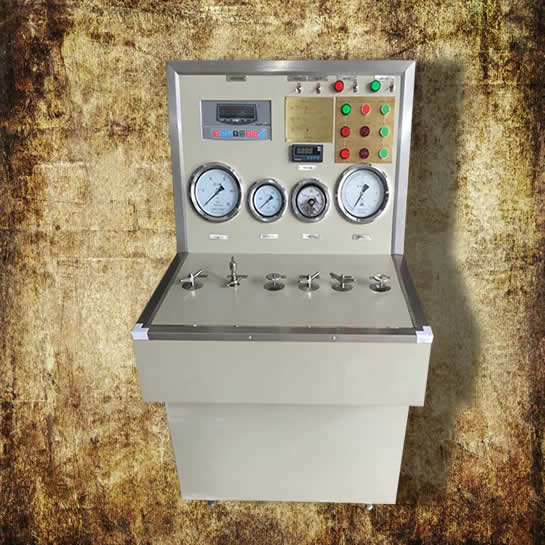

HFC-227ea(FM200) Refilling Machine

FM200 Filling Machine

Type: Automatic (Manual Optional)
Component: FM200 Filling Console
                      FM200 Filling Pump
                      Vacuum Pump
                     Digital Scale
Power: 220V 50HZ
Vacuum Pump: 0.55KW
FM200 Filling Pump: 300l/min(gas) 15l/min(liquid)
Required Driving Gas: 3~8 bar
Pressure Gauge: N2 Filling Pressure Gauge
                              N2 Cylinder Pressure Gauge
                              Driving Gas Pressure Gauge
                              Vacuum Pressure Gauge

Introduction:

FM200 filling machine is used to fill FM200 and other liquid medium without pressure. It depends on driving gas (from compressor or compressed gas) to drive a filling pump to suction and deliver FM200 gas.

Specification:

Driving Gas Required 3~8 bar compressed gas
Filling Pump Output pressure: 0~4.8Mpa
Pressure increased ratio: 6:1
Driving gas inlet size: 3/8
Pump inlet size: ZG1/2
Pump outlet size: ZG1/2
Capacity: 300l/min(gas), 15l/min(liquid)
Gas consumption: 0.6m³/h
Vacuum Pump Working condition: 220V/50HZ
Power: 0.55kw
Free Air Displacement: 8CFM
Oil capacity: 650ml
Scale 0~500kg
Console Size Approx. 1000×700×1300(L/W/H) or Customized
Pressure Gauge P1 N2 Cylinder Pressure 0~25Mpa
Pressure Gauge P2 N2 Filling Pressure 0~10Mpa
Pressure Gauge P3 Driving Gas Pressure 0~4Mpa
Pressure Gauge P4 Vacuum Pressure -0.1~1Mpa
