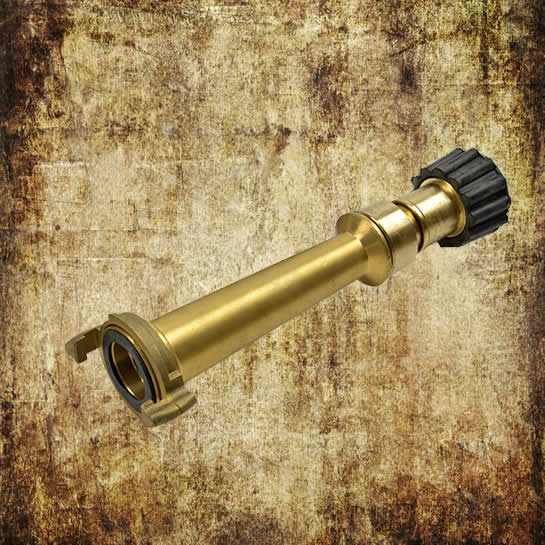

Nakajima Jet Spray Nozzle

Jet Spray Firehose Nozzle

Dual-Purpose Jet-Spray Firehose Nozzle
Type:

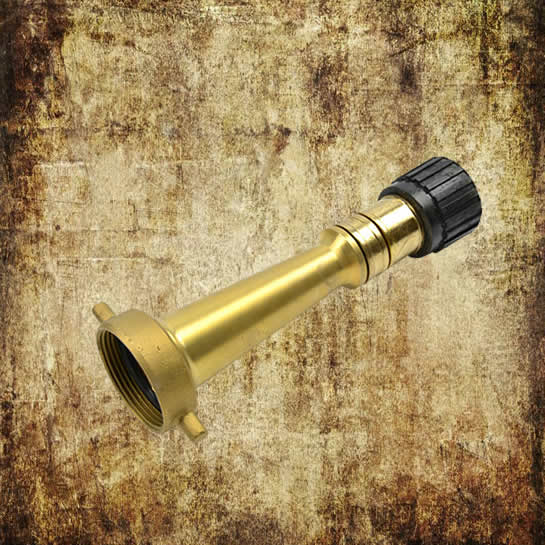

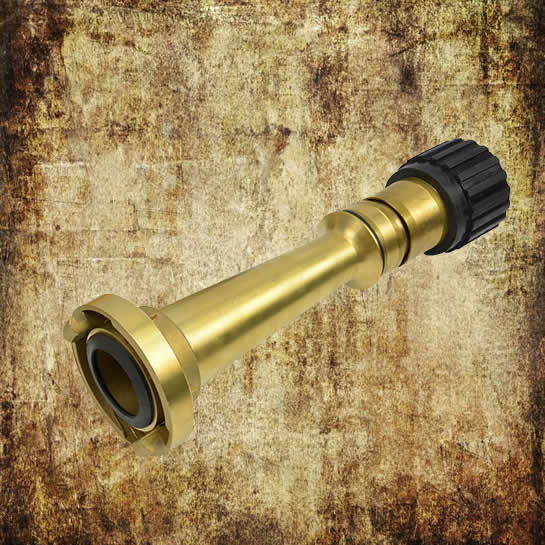

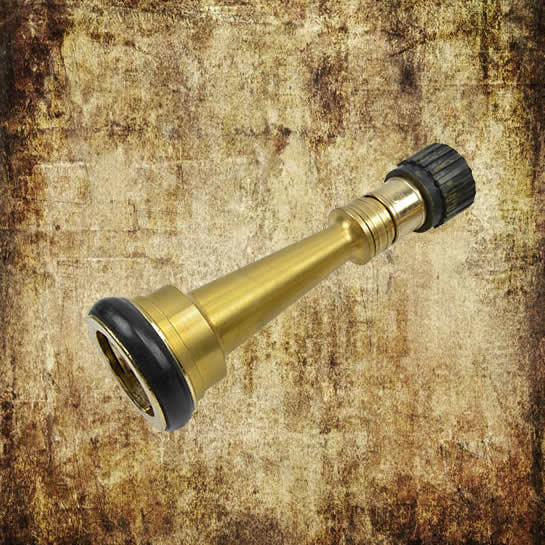

Nakajima/ Machino/ John Morris/ Ansi / Storz
Material: Brass
Certificate: CCS

Introduction:

Jet Spray Firehose Nozzle is wide variety of nozzle connecting types with hose couplings are available according to several standards. Some common types are as shown left.

Approval Standard:

1. Regulation 10, Chapter II-2 OF 1974 SOLAS, as Amended.
2. EN 15182-1(2007) Hand-held Branchpipes for Fire Service Use-Part 1: Common Requirements, Including A1(2009)
3. EN 15182-3(2007) Hand-held Branchpipes for Fire Service Use-Part 3: Smooth Bore Jet and/or One Fixed Spray Jet Angle Branchpipes PN16, Including A1(2009).
4. GB 8181-2005 National Standard of P.R.China Fire Nozzles.

Specification:

Model QD40 QD50 QD65
Material ZCuZn16Si4 ZCuZn16Si4 ZCuZn16Si4
Nominal Dia. 40mm 50mm 65mm
Rated Working Pressure 0.6 Mpa 0.6 Mpa 0.6 Mpa
Flow Rate 2.5 L/S 5.0 L/S 6.5 L/S
Strength Test Pressure 2.4 Mpa 2.4 Mpa 2.4 Mpa
Range ≥ 21M ≥ 27M ≥ 30M
Nozzle Angle 0~100° 0~100° 0~100°
