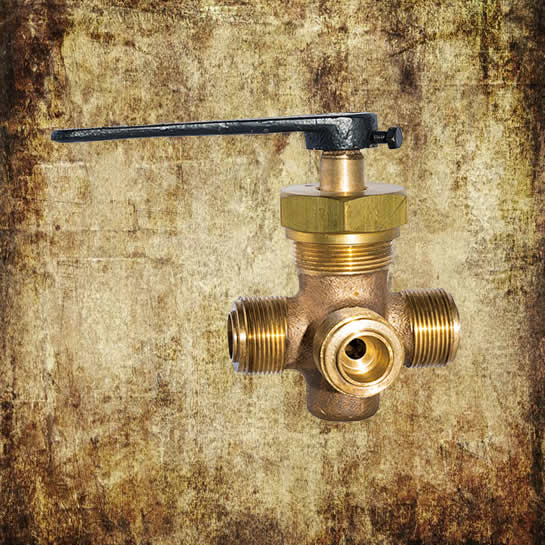

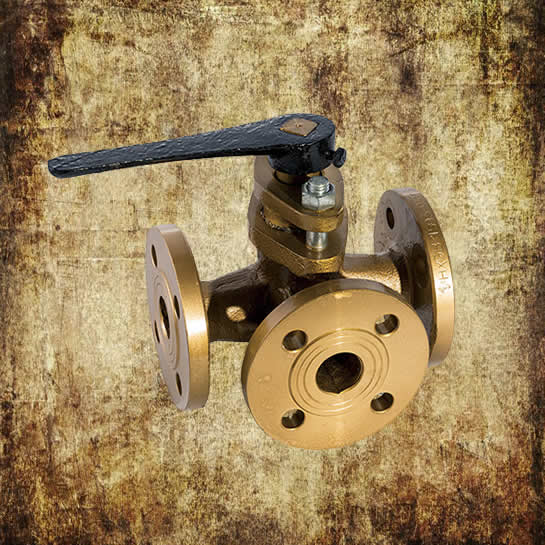

Marine Cock Valve
Marine Cock Valve:
Connection Type: Flange/ Thread
Material: Cast Iron/ Bronze
Introduction:
The Marine Cock Valve is a plunger-shaped rotary valve. By rotating 90 degrees,so that the channel on valve plug and valve body will be connected or separated,then to open and close valve
Approval Standard:
1. Chapter 2, Part 3 of China Classification Society Rules for Classification of Sea-going Steel Ships 2015 and Its Amendments.
Specification:
Marine Cock Valve
| Standard | Nominal Diameter | Nominal Pressure | Material |
| GB/T593-1993 | 20~80 mm | 0.6 Mpa | HT200/ ZCuSn10Mn2 |
| GB/T598-1980 | 6~32 mm | 1.0/1.6/2.5 Mpa | ZCuSn10Mn2 |
| GB/T599-1996 | 6~32 mm | 0.1~2.5 Mpa | ZCuSn10Mn2 |
