Water Fire Monitor
Marine Manual Type Water Fire Monitor
Type: PS
Flow: 30~100l/s / 108~360m³/h
Max. Working Pressure: 1.6 Mpa
Body Material: Alu-casting Alloy or Copper Alloy or SUS
Nozzle Material: Silicon Brass
Certificate: CCS or BV
Marine Electric Type Water Fire Monitor
Type: PSKDC
Flow: 30~250l/s / 108~900m³/h
Max. Working Pressure: 1.6 Mpa
Body Material: SUS304 or SUS316L
Nozzle Material: Silicon Brass or SUS316L
Certificate: CCS or BV
Introduction:
PS series fire monitor is manual water monitor, and handle or hand wheel operated.
PSKDC series fire monitor is electric water monitor, and it’s motor driven.
Approval Standard:
1. IMO Chapter 14 of International Code for Fire Safety Systems and Its Amendments
2. Chapter 1, Part 8 of CCS :Rules for Classification of Sea-going Steel Ships”(2015) and Its Amendments.
Specification:
Manual Type Water Fire Monitor
| Type | PS30 | PS40 | PS50 | PS60 | PS80 | PS100 |
| Flow | 30l/s | 40l/s | 50l/s | 60l/s | 80l/s | 100l/s |
| Rated Pressure | 1.0 Mpa | 1.2 Mpa | ||||
| Range | ≥55m | ≥60m | ≥65m | ≥70m | ≥80m | ≥85m |
| Recoil | 1.4KN | 1.8KN | 2.3KN | 3.0KN | 3.9KN | 4.9KN |
| Horizontal Rotation | 360° | 360° | ||||
| Vertical Rotation | -40~+60° | -60~+75° | ||||
| Body Material | Alu-casting Alloy Copper Alloy SUS |
SUS304 SUS316L |
||||
| Nozzel Material | Silicon Brass | Silicon Brass SUS316L |
||||
| Inlet Flange | DN100 PN1.6MPa | DN100 PN1.6MPa | ||||

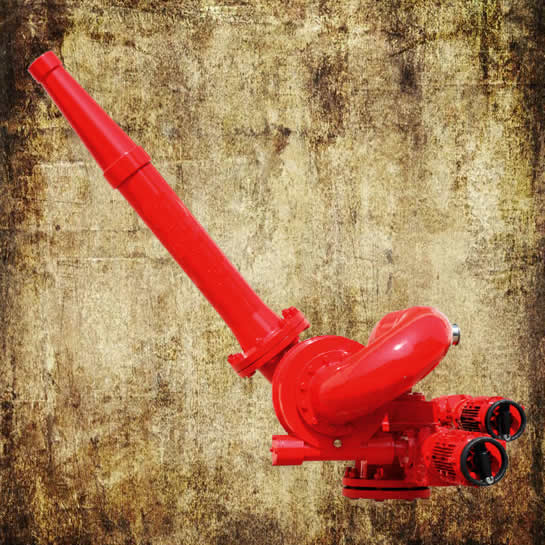

Eectric Type Water Fire Monitor
| Type | PSKDC30 | PSKDC40 | PSKDC50 | PSKDC60 | PSKDC80 | PSKDC100 |
| Flow | 30l/s | 40l/s | 50l/s | 60l/s | 80l/s | 100l/s |
| Rated Pressure | 0.8 Mpa | 1.0 Mpa | 1.2 Mpa | |||
| Range | ≥55m | ≥60m | ≥70m | ≥75m | ≥85m | ≥90m |
| Recoil | 1.2KN | 1.6KN | 2.0KN | 2.7KN | 3.6KN | 4.9KN |
| Horizontal Rotation | ±170° | |||||
| Vertical Rotation | -60~+75°(adjustable) | |||||
| Body Material | SUS304 SUS316L |
|||||
| Nozzel Material | Silicon Brass SUS316L |
|||||
| Inlet Flange | DN100 PN1.6MPa | |||||
| Voltage | 380V 50HZ/ 440V 60HZ | |||||
| Protection Grade | IP56 or IP67 | |||||
| EP-proof Grade | Exd IIB T4 | |||||
| Type | PSKDC120 | PSKDC150 | PSKDC180 | PSKDC200 | PSKDC250 |
| Flow | 120l/s | 150l/s | 180l/s | 200l/s | 250l/s |
| Rated Pressure | 1.2 Mpa | 1.4 Mpa | |||
| Range | ≥95m | ≥100m | ≥105m | ≥110m | ≥120m |
| Recoil | 5.8KN | 7.9KN | 9.5KN | 10.5KN | 13.1KN |
| Horizontal Rotation | ±170° | ||||
| Vertical Rotation | -60~+75°(adjustable) | ||||
| Body Material | SUS304 SUS316L |
||||
| Nozzel Material | SUS316L | ||||
| Inlet Flange | DN150 PN1.6MPa | ||||
| Voltage | 380V 50HZ/ 440V 60HZ | ||||
| Protection Grade | IP56 or IP67 | ||||
| EP-proof Grade | Exd IIB T4 | ||||
